AutoDustBoot with v2 Controller Board - Onefinity Gen 1
An automatic dust boot for the Onefinity Gen 1 with an automatic tool changer. It retracts before every tool change so it never meets the forks, then returns to cutting height on its own.
Automatic tool changes
It moves out of the way. Every M6.
An automatic dust boot for the Onefinity Gen 1, built for machines with an automatic tool changer. It retracts before the spindle reaches the changer and returns to cutting height afterwards, so the boot never meets the forks.
- Retracts before the spindle moves to the changer, so the boot never meets the forks
- Returns to cutting height once the change is done
- Your post processor inserts the retract and expand commands at each tool change
Capture
Chips off the table
A 1 inch brush and a 2.5 or 4 inch port pull dust and chips at the cutter, instead of leaving them across your work. Brush height is set on the machine with two buttons on the body — nothing to configure in software.
- 1 inch brush, installed
- Choose a 2.5" or 4" dust port at checkout
- Brush height raised and lowered with two buttons on the body
In the box
What arrives

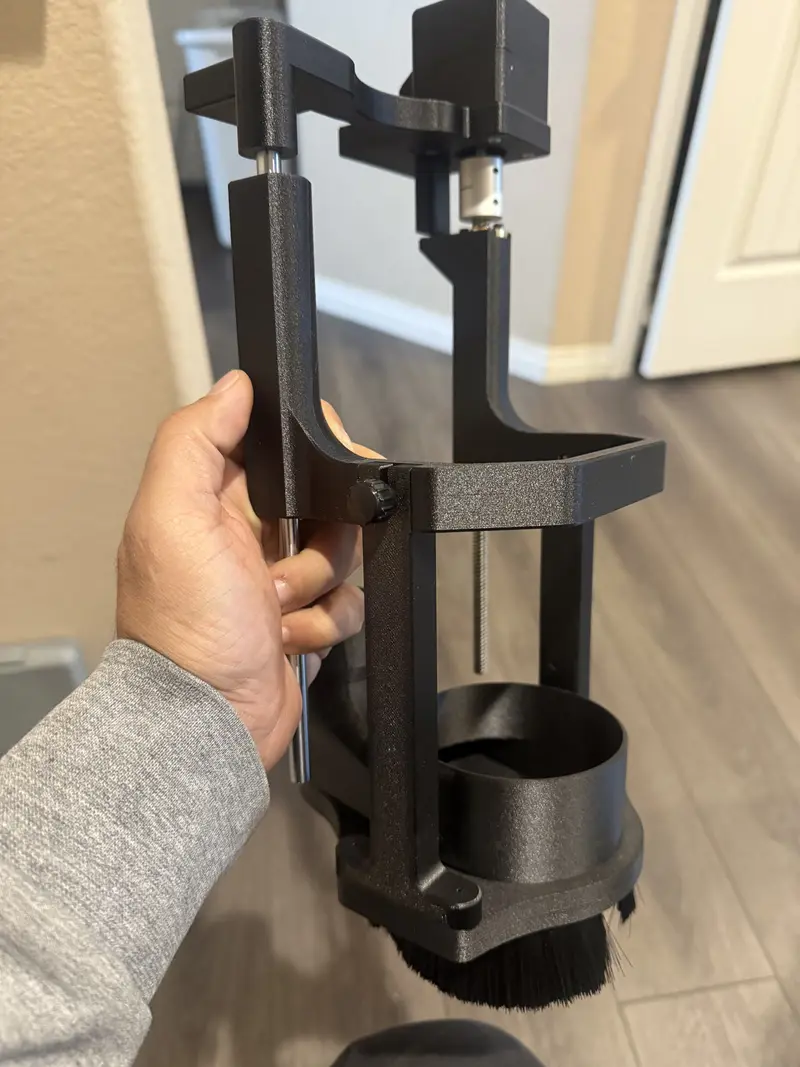

- Fully assembled AutoDustBoot
- 1" brush, installed
- Power and signal cable
- Mounting brackets
At a glance
| Machine | Onefinity Gen 1 with an automatic tool changer |
|---|---|
| Controller | Masso |
| Dust port | 2.5" or 4" — chosen at checkout |
| Brush | 1" installed |
| Trigger | Retract and expand commands from your post processor, at each tool change |
| Power | 24 V DC |
| Assembly | Hand assembled in the USA |
Questions
Do I need to change my post processor?
Yes. On the Gen 1 the post processor inserts the retract and expand commands around each tool change, so the boot knows when to move out of the way and when to come back. It is a one-time change to your post.
Which dust port should I pick?
Choose 2.5" or 4" at checkout to match your hose. The brush is 1" and comes installed either way.
Is there a wireless option?
The wireless add-on needs ncSender or ncSenderPro, so it does not apply to a Masso machine. This boot uses the power and signal cable that comes in the box.
How does the pre-order work?
Your card is charged when you order, and the boot ships as soon as the batch is ready. The current estimate is shown above the buy button, and this page is updated if it moves.
