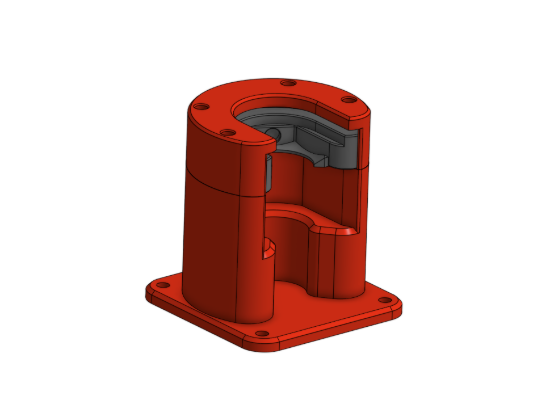

3D Touch Probe Auto Docking (Digital Only)

Securely stores the probe in a fixed location and allows quick docking and removal.

The design uses pogo pin contacts, so there’s no need to manually connect or disconnect cables. Just dock the probe and it’s ready to use.

The file is provided in STEP format, allowing you to modify or customize the design to fit your specific setup before 3D printing.

What you get

• STEP file for customization and 3D printing

• Instant digital download

Notes

• Digital file only – no physical item included

• Touch probe, pogo pins, and hardware not included

• For personal use unless otherwise stated

Simple, clean, and flexible for CNC users who want convenience and customization.

Hardware needed

• 6 × 3 mm magnets

• Springs

• USB connector

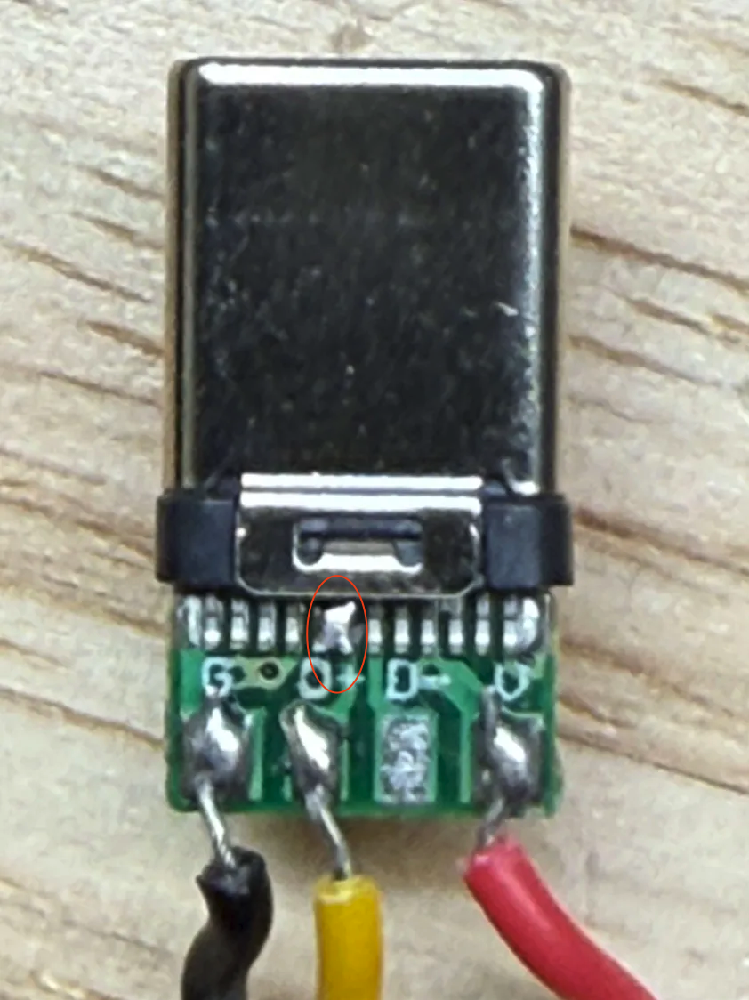

  For the USB connector, one of the pins needs to be jumped/shorted to another pin. Use multi-tester to verify the connections.




• 3 Pogo pin connectors

• Self-Tapping Screws




If you are using ncSender with RapidChangeATC plugin, here's the reference of the Load and Unload command. You need to change the X Y Z value based on your configuration.

Sample Load Command (G-code)

G53 G0 X10.097 Y-522.862
G53 G0 Z-80
M3S350
G53 G1 Z-88.0 F500
G4 P1.5
M5
G53 G1 Z-87.0 F500
G53 G1 Y-567 F1000
(Validate if Probe is working first)
G53 G0 Z-26
G53 G1 Y-522 F2000
G38.2 G91 Y17 F500
G53 G1 Y-522 F2000

Sample Unload Command (G-code)

G53 G0 X10.097 Y-567
G53 G0 Z-87.0
G53 G1 Y-522.862 F500
G65P6
M4S700
G4 P0.5
G53 G1 Z-80 F1500
M5
